Generate a benchmarking graphic

Source: R/plot_graphTable.R
bench_graphs.Rd

Functions used internally by plot_graphTable() to generate the benchmarking graphics in a PDF file:

When these functions are called directly, the graphTable data frame should only contain a single series and the graphic is generated in the current (active) graphics device.

Usage

ori_plot(
  graphTable,
  title_str = "Original Scale",
  subtitle_str = NULL,
  mth_gap = NULL,
  points_set = NULL,
  pt_sz = 2,
  display_ggplot = TRUE,
  .setup = TRUE
)

adj_plot(
  graphTable,
  title_str = "Adjustment Scale",
  subtitle_str = NULL,
  mth_gap = NULL,
  full_set = NULL,
  pt_sz = 2,
  display_ggplot = TRUE,
  .setup = TRUE
)

GR_plot(
  graphTable,
  title_str = "Growth Rates",
  subtitle_str = NULL,
  factor = NULL,
  type_chars = NULL,
  periodicity = NULL,
  display_ggplot = TRUE,
  .setup = TRUE
)

GR_table(
  graphTable,
  title_str = "Growth Rates Table",
  subtitle_str = NULL,
  factor = NULL,
  type_chars = NULL,
  display_ggplot = TRUE,
  .setup = TRUE
)

Arguments

graphTable

(mandatory)

Data frame (object of class "data.frame") corresponding to the benchmarking function outputgraphTable data frame.

title_str, subtitle_str

(optional)

Graphic title and subtitle strings (character constants). subtitle_str is automatically built from the graphTable data frame contents when NULL and contains the graphTable data frame name on the 2nd line and the benchmarking parameters on the 3rd line. Specifying empty strings ("") would remove the titles. Simple Markdown and HTML syntax is allowed (e.g., for bold, italic or colored fonts) through package ggtext (see help(package = "ggtext")).

Default values are subtitle_str = NULL and a function specific string for title_str (see Usage).

mth_gap

(optional)

Number of months between consecutive periods (e.g. 1 for monthly data, 3 for quarterly data, etc.). Based on the graphTable data frame contents when NULL (calculated as 12 / graphTable$periodicity[1]).

Default value is mth_gap = NULL.

points_set, full_set

(optional)

Character vector of the elements (variables of the graphTable data frame) to include in the plot. Automatically built when NULL. See plot_graphTable() for the (default) list of variables used for each type of graphic.

Default values are points_set = NULL and full_set = NULL.

pt_sz

(optional)

Size of the data points shape (symbol) for ggplot2.

Default value is pt_sz = 2.

display_ggplot

(optional)

Logical arguments indicating whether or not the ggplot object(s) should be displayed in the current (active) graphics device.

Default value is display_ggplot = TRUE.

.setup

(optional)

Logical argument indicating whether the setup steps must be executed or not. Must be TRUE when the function is called directly (i.e., outside of the plot_graphTable() context).

Default value is .setup = TRUE.

factor, type_chars

(optional)

Growth rates factor (1 or 100) and value label suffix ("" or "(%)") according to the adjustment model parameter \(\lambda\). Based on the graphTable data frame contents when NULL (based on graphTable$lambda[1]).

Default values are factor = NULL and type_chars = NULL.

periodicity

(optional)

Number of periods in a year. Based on the graphTable data frame contents when NULL (defined as graphTable$periodicity[1]).

Default value is periodicity = NULL.

Value

In addition to displaying the corresponding graphic(s) in the current (active) graphics device (except when display_ggplot = FALSE), each function also invisibly returns a list containing the generated ggplot object(s). Notes:

  • ori_plot() and adj_plot() generate a single ggplot object (single graphic) while GR_plot() and GR_table() will often generate several ggplot objects (several graphics).

  • The returned ggplot object(s) can be displayed manually with print(), in which case the following ggplot2 theme updates (used internally when display_ggplot = TRUE) are suggested:

    ggplot2::theme_update(
  plot.title = ggtext::element_markdown(hjust = 0.5),
  plot.subtitle = ggtext::element_markdown(hjust = 0.5),
  legend.position = "bottom",
  plot.margin = ggplot2::margin(t = 1.5, r = 1.5, b = 1.5, l = 1.5, unit = "cm"))

Details

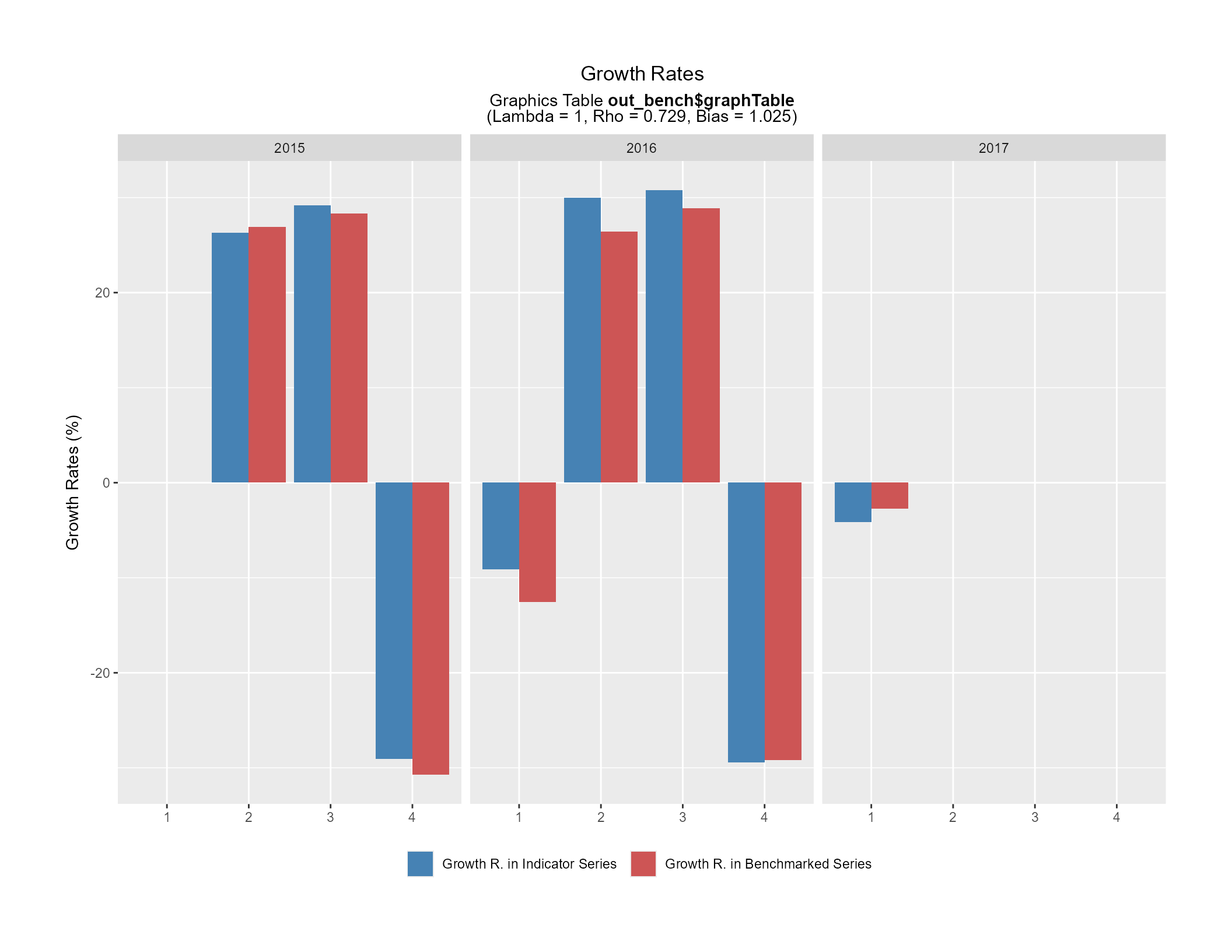

See plot_graphTable() for a detailed description of the four benchmarking graphics associated to these individual functions. These graphics are optimized for the US Letter paper size format in landscape view, i.e., 11in wide (27.9cm, 1056px with 96 DPI) and 8.5in tall (21.6cm, 816px with 96 DPI). Keep this in mind when viewing or saving graphics generated by calls to these individual functions (i.e., outside of the plot_graphTable() context). Also note that GR_plot() and GR_table() will often generate more than one graphic (more than one page), unless the number of periods included in the input graphTable data frame is reduced (e.g., subsetting the data frame by ranges of calendar years).

See also

plot_graphTable() plot_benchAdj() benchmarking() stock_benchmarking()

Examples

# Deactivate the graphics device creation for the pkgdown website HTML reference page
# (irrelevant in that context)
new_grDev <- !(identical(Sys.getenv("IN_PKGDOWN"), "true"))


# Initial quarterly time series (indicator series to be benchmarked)
qtr_ts <- ts(c(1.9, 2.4, 3.1, 2.2, 2.0, 2.6, 3.4, 2.4, 2.3),
             start = c(2015, 1), frequency = 4)

# Annual time series (benchmarks)
ann_ts <- ts(c(10.3, 10.2), start = 2015, frequency = 1)

# Proportional benchmarking
out_bench <- benchmarking(ts_to_tsDF(qtr_ts),
                          ts_to_bmkDF(ann_ts, ind_frequency = 4),
                          rho = 0.729, lambda = 1, biasOption = 3,
                          quiet = TRUE)


# Open a new graphics device that is 11in wide and 8.5in tall
# (US Letter paper size format in landscape view)
if (new_grDev) {
  dev.new(width = 11, height = 8.5, unit = "in", noRStudioGD = TRUE)
}

# Generate the benchmarking graphics

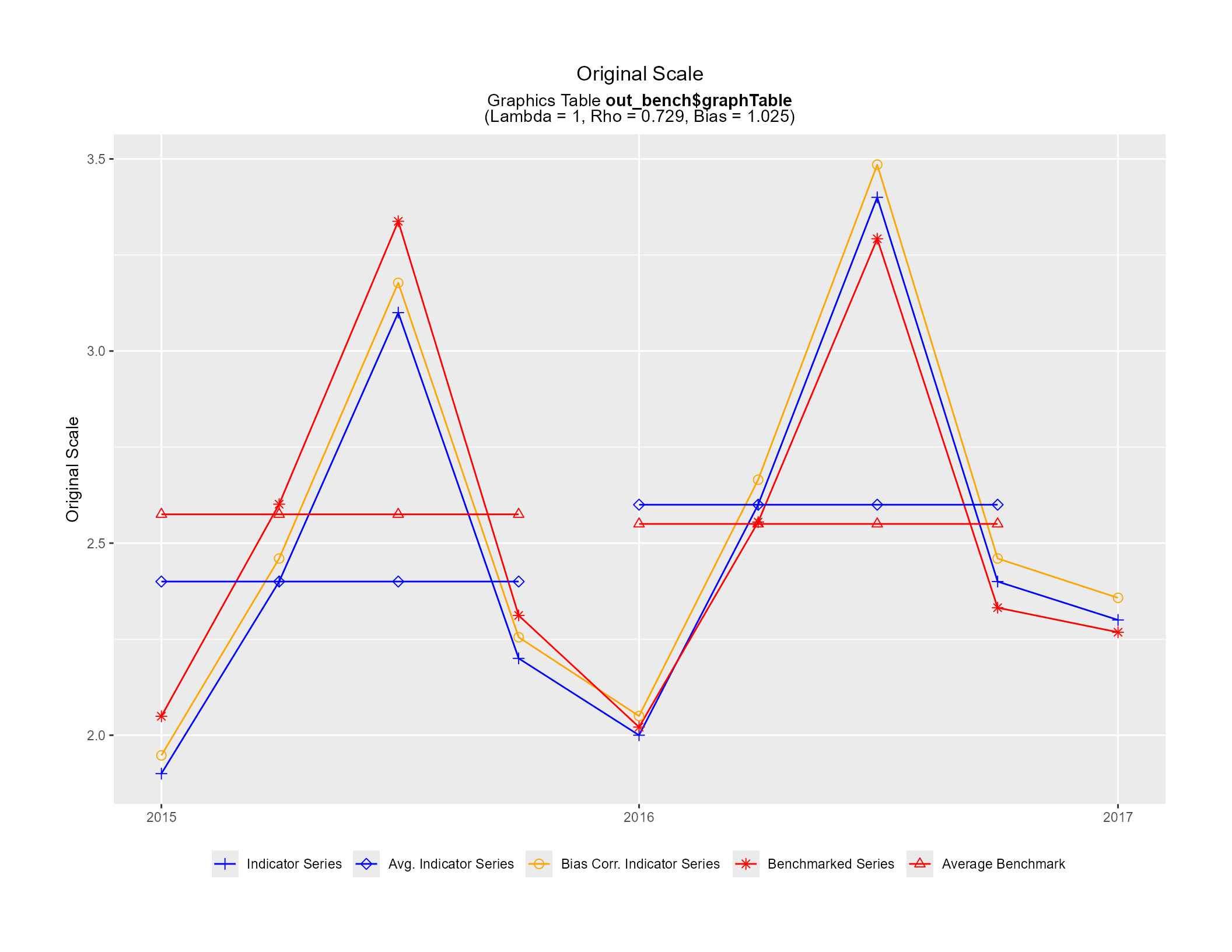

ori_plot(out_bench$graphTable)

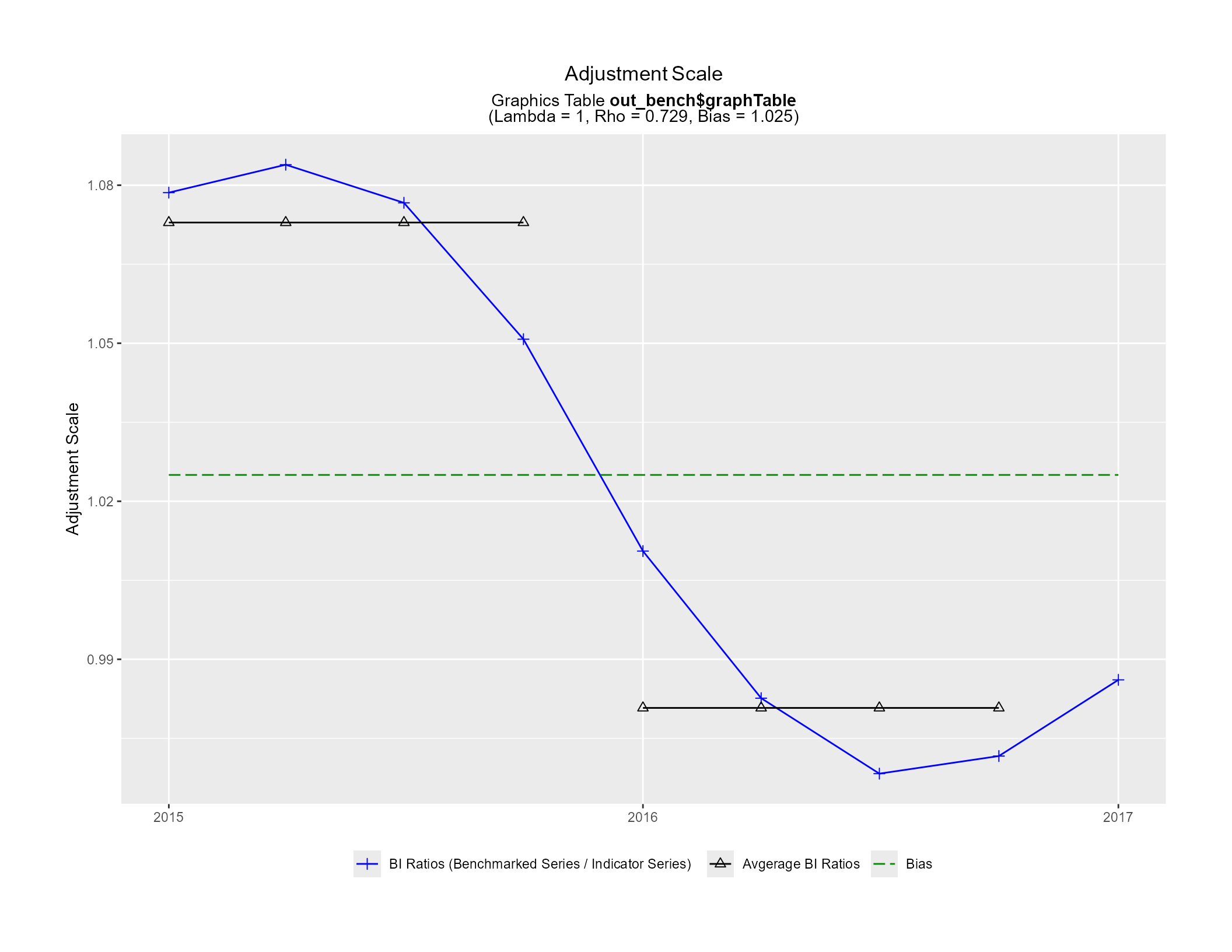

adj_plot(out_bench$graphTable)

GR_plot(out_bench$graphTable)

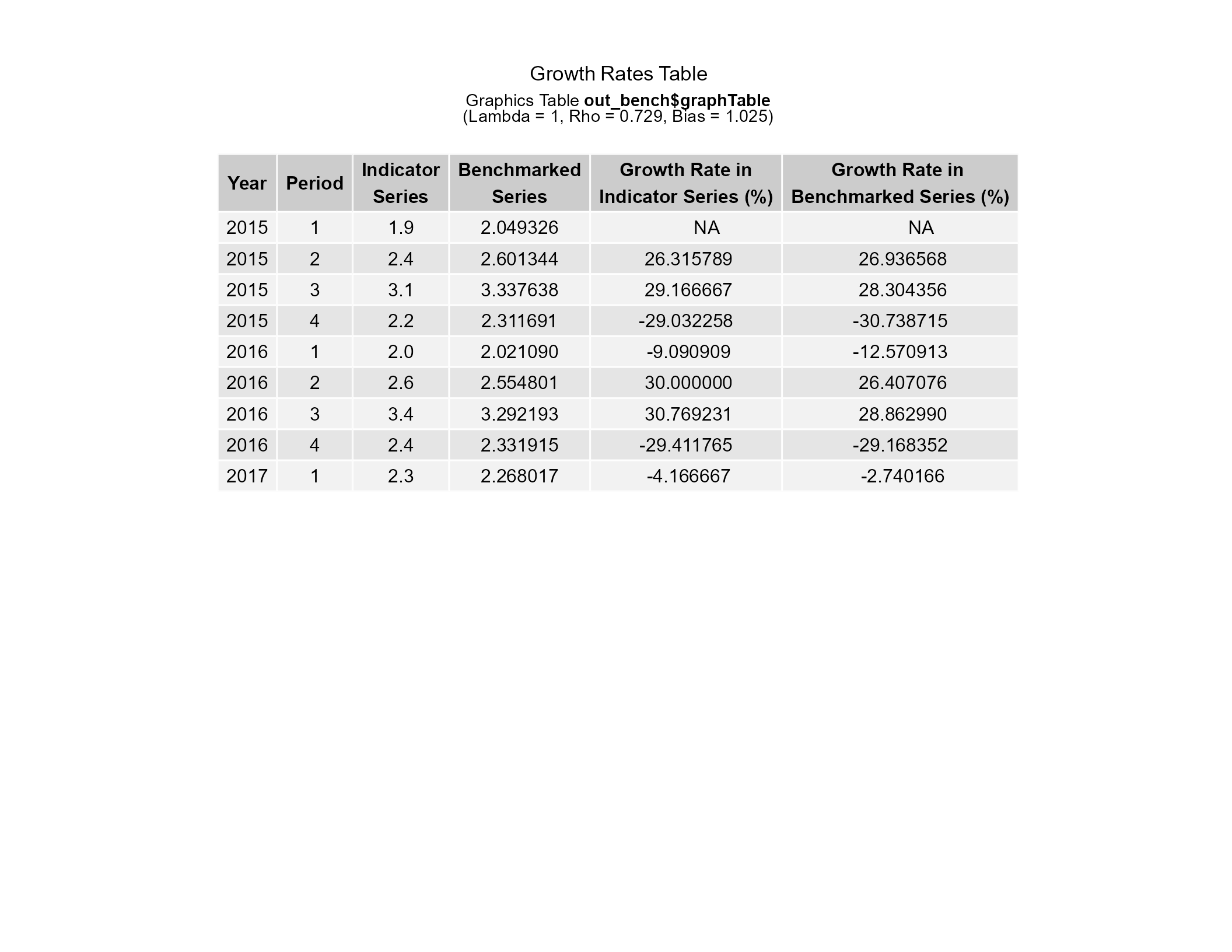

GR_table(out_bench$graphTable)



# Simulate multiple series benchmarking (3 series)

qtr_mts <- ts.union(ser1 = qtr_ts, ser2 = qtr_ts * 100, ser3 = qtr_ts * 10)
ann_mts <- ts.union(ser1 = ann_ts, ser2 = ann_ts * 100, ser3 = ann_ts * 10)

# Using argument `allCols = TRUE` (identify series with column `varSeries`)
out_bench2 <- benchmarking(ts_to_tsDF(qtr_mts),
                           ts_to_bmkDF(ann_mts, ind_frequency = 4),
                           rho = 0.729, lambda = 1, biasOption = 3,
                           allCols = TRUE,
                           quiet = TRUE)
#>
#> Benchmarking indicator series [ser1] with benchmarks [ser1]
#> -----------------------------------------------------------
#>
#> Benchmarking indicator series [ser2] with benchmarks [ser2]
#> -----------------------------------------------------------
#>
#> Benchmarking indicator series [ser3] with benchmarks [ser3]
#> -----------------------------------------------------------

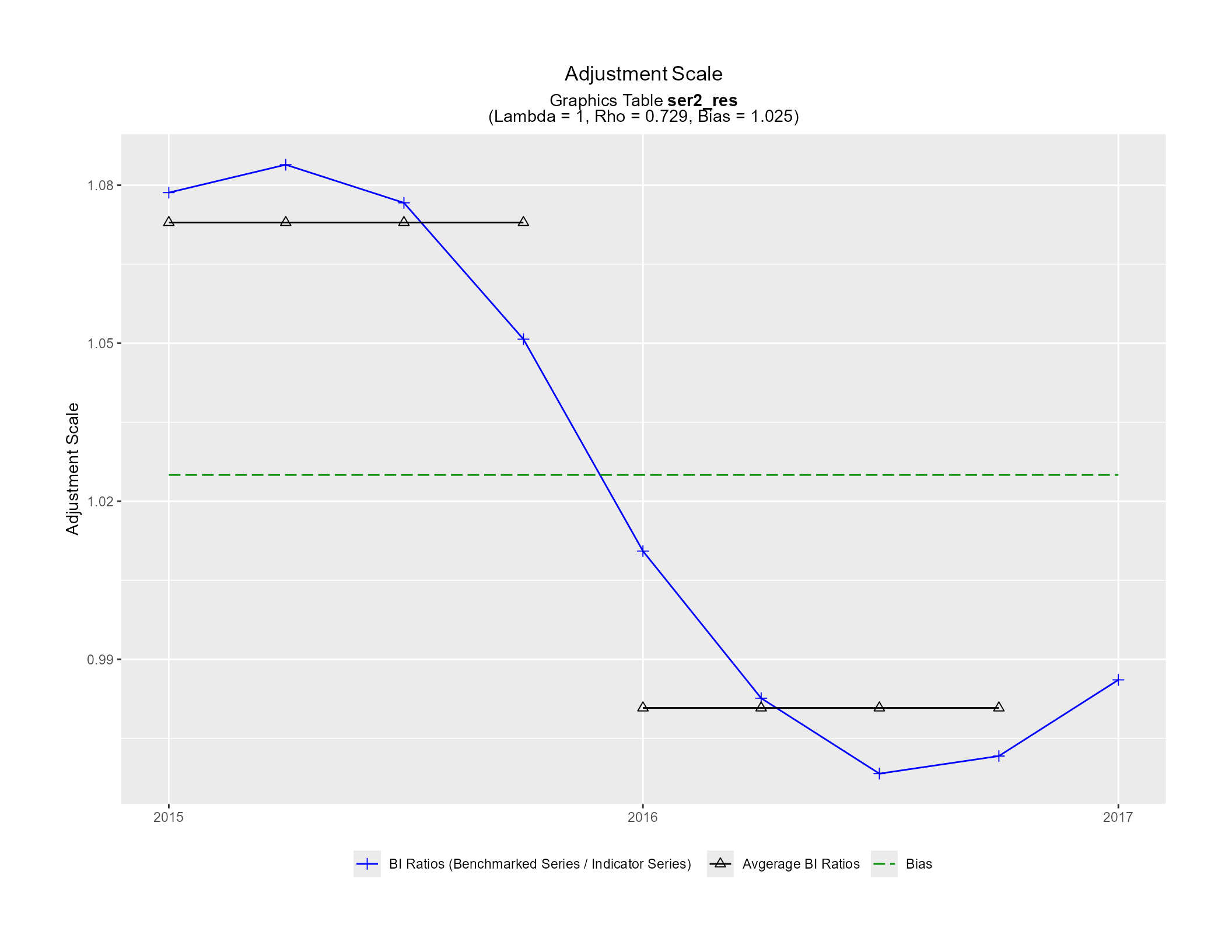

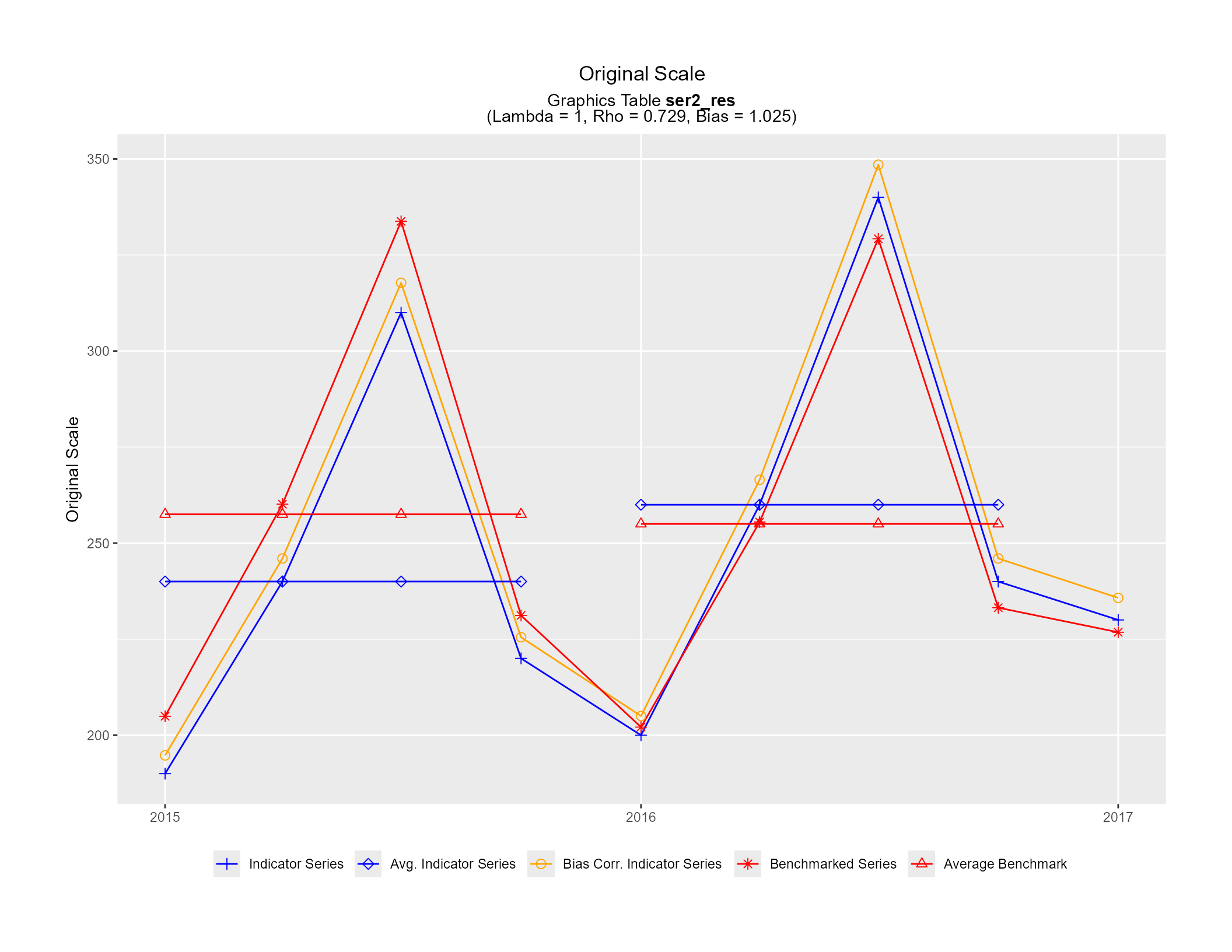

# Original and adjustment scale plots for the 2nd series (ser2)
ser2_res <- out_bench2$graphTable[out_bench2$graphTable$varSeries == "ser2", ]
ori_plot(ser2_res)

adj_plot(ser2_res)


# Using argument `by = "series"` (identify series with column `series`)
out_bench3 <- benchmarking(stack_tsDF(ts_to_tsDF(qtr_mts)),
                           stack_bmkDF(ts_to_bmkDF(ann_mts, ind_frequency = 4)),
                           rho = 0.729, lambda = 1, biasOption = 3,
                           by = "series",
                           quiet = TRUE)
#>
#> Benchmarking by-group 1 (series=ser1)
#> =====================================
#>
#> Benchmarking by-group 2 (series=ser2)
#> =====================================
#>
#> Benchmarking by-group 3 (series=ser3)
#> =====================================

# Growth rates plot for the 3rd series (ser3)
ser3_res <- out_bench3$graphTable[out_bench3$graphTable$series == "ser3", ]
GR_plot(ser3_res)



# Close the graphics device
if (new_grDev) {
  dev.off()
}
